Desccription
This quick guide outlines how to configure the quality Platinum and Titanium sensors.
Contents
- Section 1: Configuring Imaging Settings in GXpicture
-
Section 2: Configuring Imaging Settings In Curve Capture
Section 1: Configuring Imaging Settings in GXpicture
- Right click on the sensor icon in the task tray (hover over the icon to see if its the GXS-700 or IXS sensor)
- Select Image Settings
-

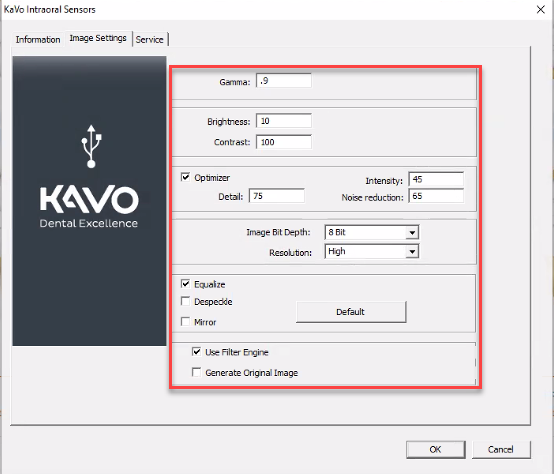

In the image settings menu set the following
-
Gamma: .9
Brightness: 10 - Contrast: 100
- Optimizer option: Checked
- Detail: 75
- Intensity: 45
- Noise reduction: 65
- Image Bit Depth: 8bit
- Resolution: High
- Equalizer: Checked
- Leave the remaining settings the same
- Select OK
Section 2: Configuring Imaging Settings In Curve Capture
- Go to the charting module.
- Go to imaging.
- Go to get an image.
- Select sensor in config.
- Select configuration dropdown

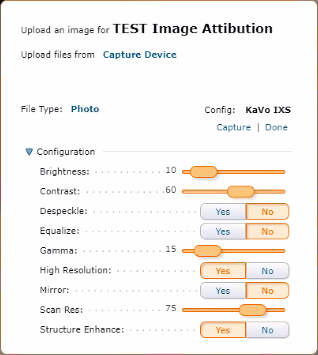

- Enter the following settings
-
- Brightness: 10
- Contrast: 60
- Despeckle: no
- Equalize: no
- Gamma: 15
- High Resolution: yes
- Mirror: no
- Scan Res: 75
- Structure Enhance: yes
