Description
This quick guide demonstrates how to open the Imaging module, and capture a single image.

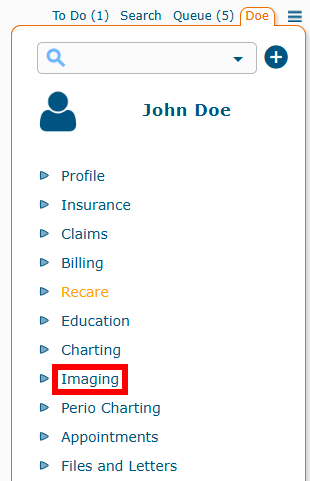

With the correct patient pulled up in the sidekick, click Imaging.
At the bottom of the page in the Imaging Gallery, left click on Get an Image.

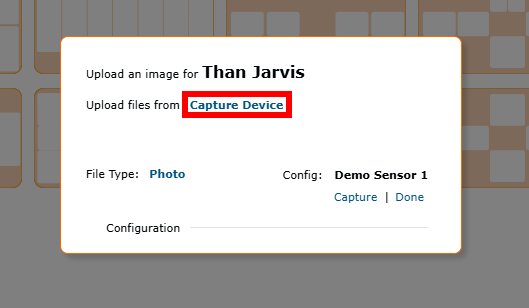

Click Hard Drive next to Upload Files From. Select Capture Device.
*Note that if Capture Device is not an available option, it is likely that Curve Capture is not running or has not been installed.
- (Optional) Click Photo to select an image type.
- Select the device by clicking next to Config.
- Click Capture.
- A separate box 'Capturing...' will appear with a moving indicator, or a dialog box for the TWAIN device will load.
- The sensor is ready to be placed in the patient's mouth. Once the sensor and x-ray head are positioned, expose the sensor to radiation.

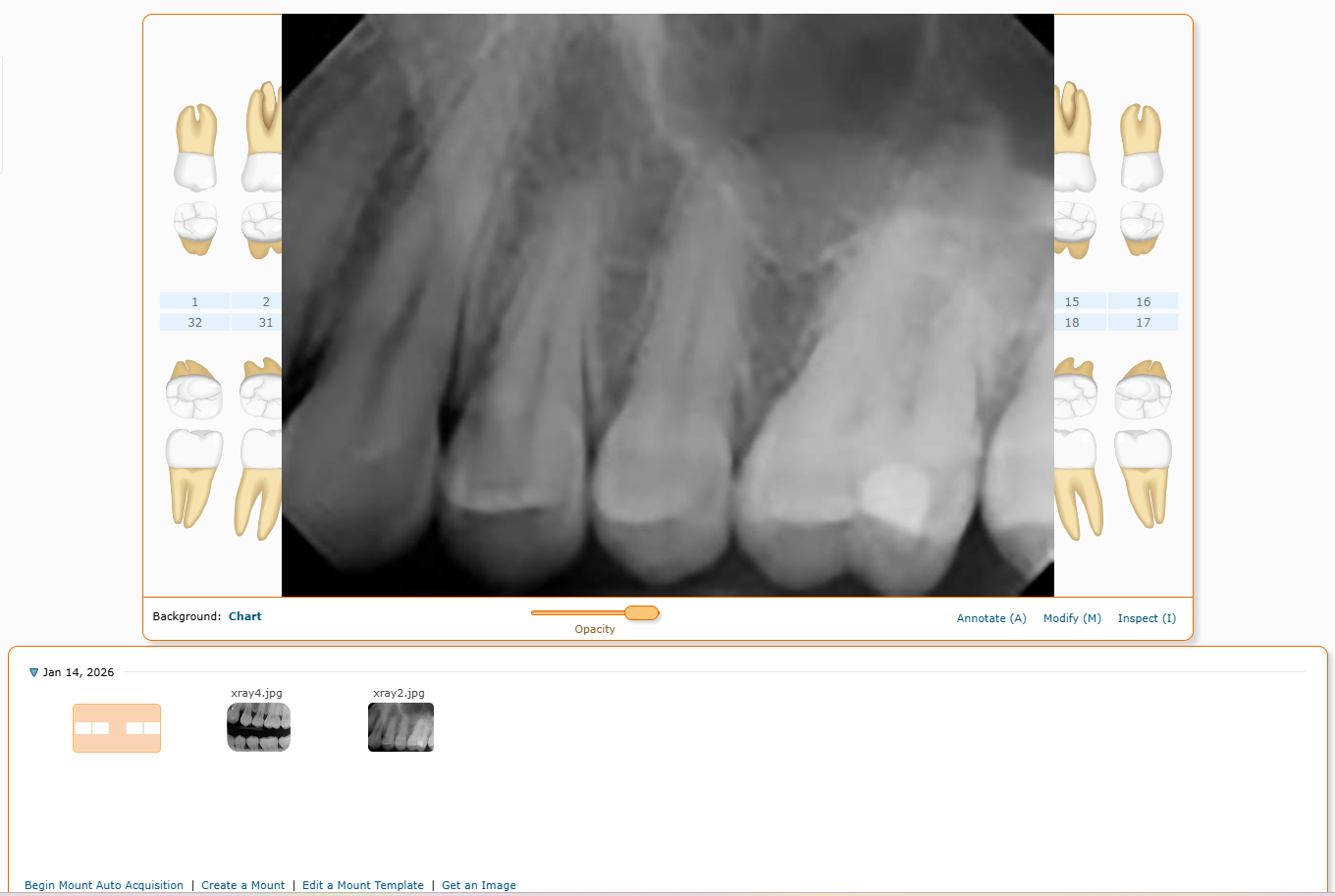

In a few seconds, the image will appear as a small thumbnail in the Image Gallery and load onto your screen.
- Left click on Done to exit the capture screen.
